Resources

Resources are external files, such as audio, images, video, and network roster data, that you can use within your interview protocol.

Details

In Architect, resources are any external files that you use within your interview. These can be media files, such as audio, images, or video. They can also be network data files that you can use as a roster. Careful use of resources can improve the interview experience for your participants or enable different types of interview workflow.

Once you add resources to your protocol in Architect, they are stored within the .netcanvas file itself. Because of this, you must handle updating or removing resources from within Architect.

Adding resources to a stage

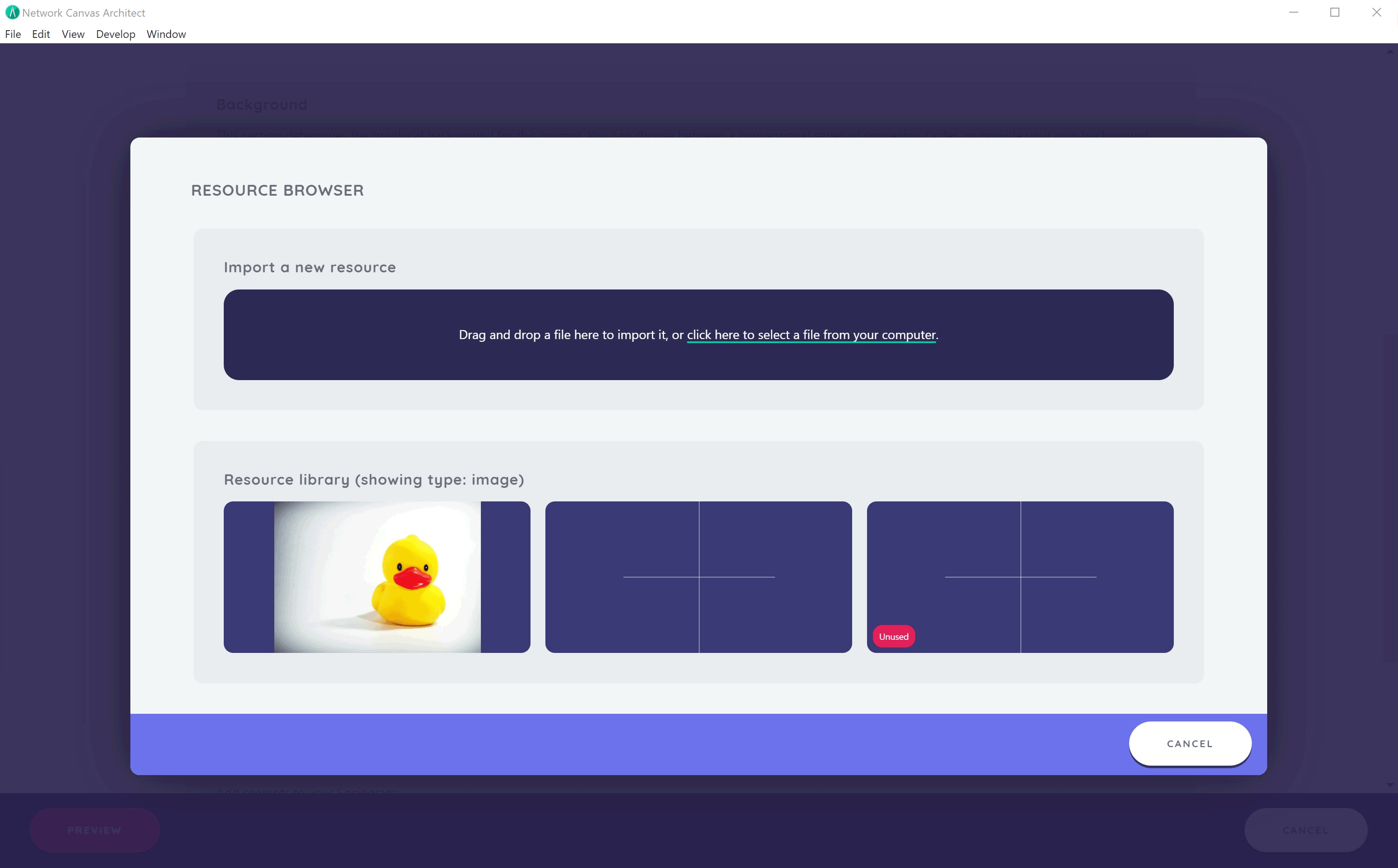

Many stages allow you to add resources directly while configuring them. This is designed to provide a more seamless flow when creating your interview protocol. Examples of this include background images on the Sociogram Interface, roster files in either of the roster Name Generators, and media files on the Information Interface.

If the stage you are configuring uses a resource, it will provide an interface for you to add it directly and will give instructions about which type of resource is required.

Adding and removing resources from the resource library

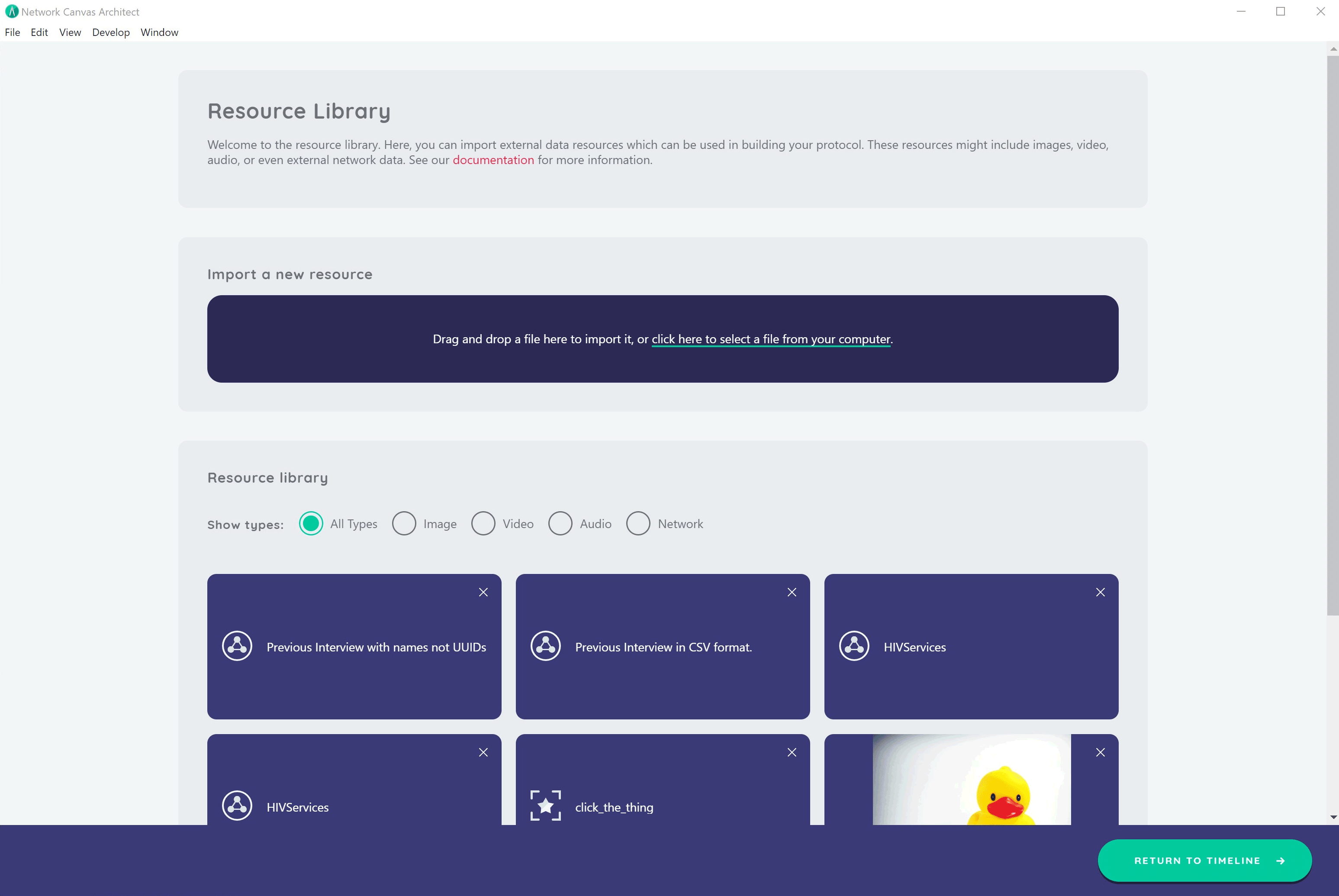

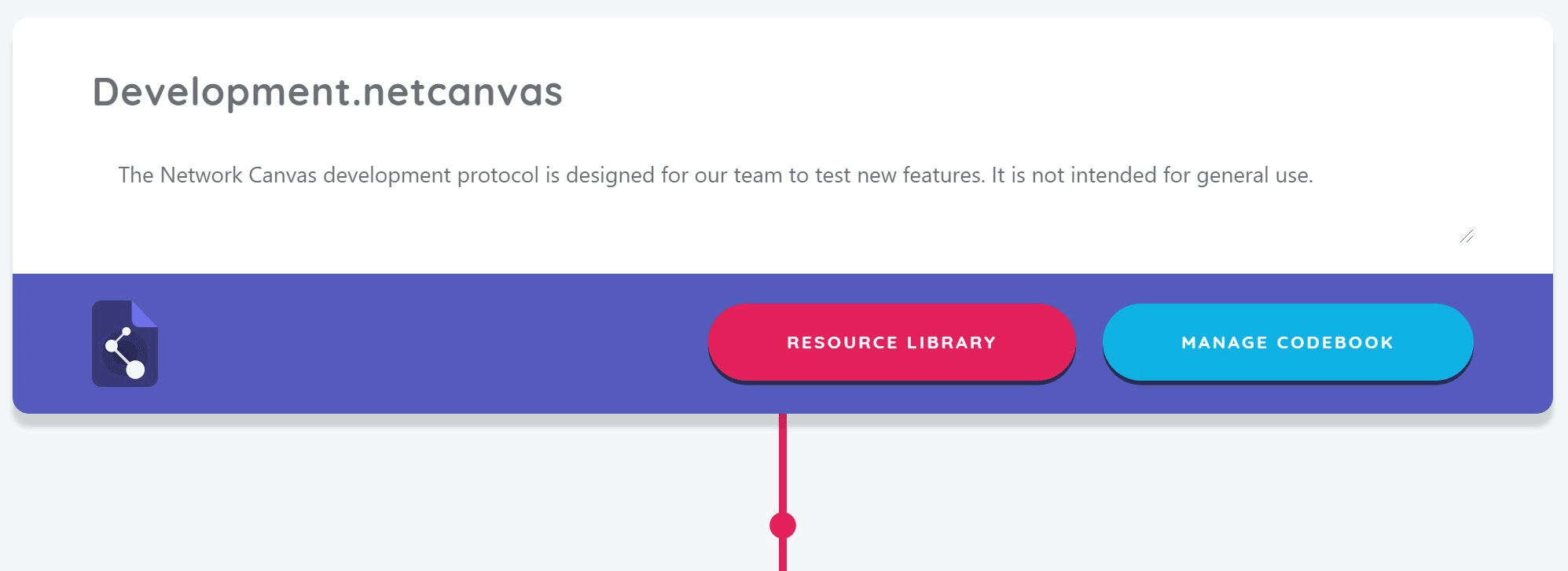

For a broader overview of all resources within your current protocol, click the resource library button in the upper right hand corner of the protocol overview card when looking at the timeline. This will open the resource library.

In the resource library screen, you can browse, filter, and delete any existing resources, as well as add new ones. To add a new resource to the resource library, drag and drop a file into the designated area or browse for the file you wish to import.

You will notice that existing resources that are unused show a red unused pill. This indicates that you can delete them. Attempting to delete a resource that is in use within your interview will be prevented. You must first update or remove all uses of a resource before you can delete it.

Supported file types


Interviewer supports JPEG, GIF, and PNG image file formats.

Audio

Interviewer supports MP3, AIFF, M4A, and MP4 audio file formats.

Video

Interviewer supports MP4 and MOV video file formats. Take special care when using video to make your files as small as possible.

Network

Interviewer supports network data in CSV format. The heading row will be used to set variable names for any nodes brought into the interview. Ensure that you have a column called name to take advantage of automatic node labelling. Download a simple example CSV file from here.
